Bus Vorzelte für VW T5 & T6 Modelle
Bus Vorzelt Verbindung für VW T5 & T6 California
Die Verbindung zwischen dem T5/T6 Bus und dem Zelt wird mit Hilfe der California-Kederschiene hergestellt.
Die Kederschiene kann bei VW unter folgenden Artikelnummern bestellt werden: 7H7 875 303
Fusion
The delivery includes the VW-Bus Fusion Panel. You can choose between 7 different Fusion panels:

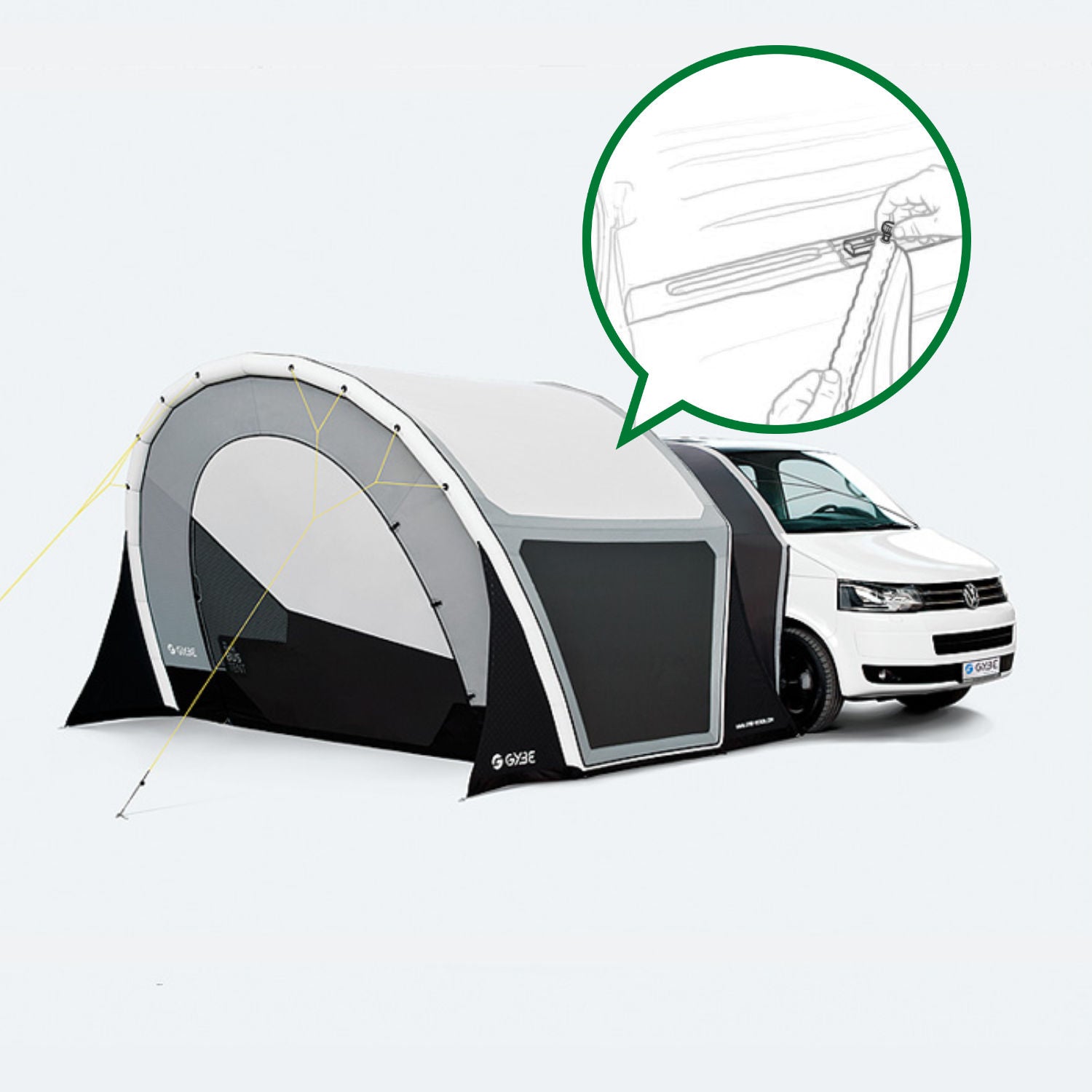

T5/T6 Roof Slider
The connection between the Bus and the tent is realized through the guide-rail which can be installed on the roof. You can easily purchase the guide-rail at your local VW dealer under following article numbers:
Left side / 7H1 860 181 A QZU
Right side / 7H1 860 182 A QZU
T5/T6 Roof Slider LONG
The connection between the Bus with long wheelbase and the tent is realized through the guide-rail which can be installed on the roof. You can easily purchase the guide-rail for the Bus with long wheelbase at your local VW dealer under following article numbers:
Left side / 7H3 860 181 A QZU
Right side / 7H3 860 182 A QZU
T5/T6 California
The connection between the Bus and the tent is realized through the T5/T6 California-welting-rail. You can easily purchase the welting-rail at your local VW dealer under following article number:
7H7 875 303
T5/T6 Roof Slider Center Screw
The connection between the Bus and the tent is realized through the guide-rail which can be installed on the roof. You can easily purchase the guide-rail at your local VW dealer under following article numbers:
Left side / 7H1 860 181 A QZU
Right side / 7H1 860 182 A QZU
The difference between the version Roof Slider Center Screw and the simple Roof Slider is, that the Roof Slider allows you to still use a roof rack which is installed on the guide-rail. The necessary Fusion guide-rail sliders can be installed permanently in between the roof rack.
T5/T6 Roof Slider Center Screw LONG
The connection between the Bus with long wheelbase and the tent is realized through the guide-rail which can be installed on the roof. You can easily purchase the guide-rail for the Bus with long wheelbase at your local VW dealer under following article numbers:
Left side / 7H3 860 181 A QZU
Right side / 7H3 860 182 A QZU
The difference between the version Roof Slider Center Screw LONG and the simple Roof Slider LONG is, that the Roof Slider allows you to still use a roof rack which is installed on the guide-rail. The necessary Fusion guide-rail sliders can be installed permanently in between the roof rack.
T5/T6 Multirail
The connection between the Bus and the tent is realized through the T5/T6-Multirail (not California rail). Please note that the Multirail-welt-rope has a diameter of 8,5 mm and will not fit to the California welting rail.
T5/T6 Multirail LONG
The connection between the Bus with long wheelbase and the tent is realized through the T5/T6-Multirail (not California rail). Please note that the Multirail-welt-rope has a diameter of 8,5 mm and will not fit to the California welting rail.
Product
Surf until sunset and catch the first wave the next morning, always dance to the rhythm of the moment.
The T5/T6 Bus Tent is the ideal supplement to your adventure equipment. Pack everything you need for your free time into the bus and zoom off. The ingenious tent system from GYBE® will easily double the floor space of your bus. Your T5/T6 Bus Tent can stand alone. Because of the easy zipper action on the connector piece (Fusion Panel), you can detach the tent from your vehicle at any time and maintain maximum flexibility.
Details
The GYBE T5/T6 Bus Tent is especially designed for the VW model T5/T6. The connection between the Bus and the tent can be realized through 7 different FUSION-panels.
Because of its asymmetric shape the tent can be placed towards the right side of the driving direction only. You have a T5/T6 Bus which only allows you the tent connection on the left handside in driving direction? Then please contact us for more information about the UK-Version of the Bus Tent.
Scope of delivery:
1x Tent, 1x Front Panel, 1x Rear Panel, 1x Backpack, 1x Double action hand pump, 1x Repair set, 1x Fusion Panel, 18x pegs
Set up time
Set up time with 12V Battery pump: 3 min.
Set up time with Hand pump: 5 min.
Set up time total: 10 min.
Dimensions
Height: 2,3 m
Width : 3,75 m
Depth: 2,9 m
Roofed area, Tent attached: 7,9 m²
Roofed area, Tent independent: 4,8 m²
Height of doorway Front: 1,87 m
Height of doorway Rear: 2,05 m
Weight
T5/T6 Tent including Backpack: 11,0 kg
T5/T6 Fusion Panel: 1,0 kg
Set T5/T6 pegs: 2,0 kg
Double action hand pump: 1,0 kg
You can choose between five color ways:
FROST / GENERATION / HANGOVER / MIDNIGHT / SUNSET
